ROAD TOAD SPECIFICATIONS

Light Weight

ABODE: Sleeper Trailer w/Galley

Dry Weight ** - 470 lbs. (215 kg)

Gear Capacity ** - 530 lbs. (240 kg)

Tongue Weight - 65 lbs. (30 kg)

Gross Weight - 1000 lbs. (455 kg)

2000 lb axle, 5 x 4.5" Bolt Pattern

TOTES: Cargo Trailer

Dry Weight ** - 400 lbs. (180 kg)

Gear Capacity ** - 600 lbs. (275 kg)

Tongue Weight - 65 lbs. (30 kg)

Gross Weight - 1000 lbs. (455 kg)

2000 lb axle, 5 x 4.5" Bolt Pattern

* Weights shown for standard configuration, no options added.
** Weights shown with 13" Tires installed.

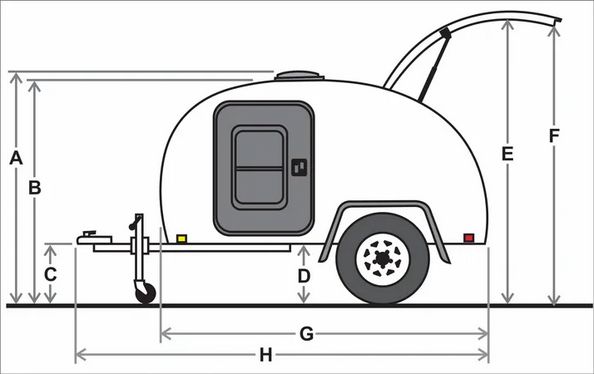

Compact on the Outside

Body Width : 60.5"

Width to Fenders : 80.5"

(G) Cabin Length : 8'

(H) Overall Length : 11' 2"

24" x 34" Side Door Openings

Trailer vertical dimensions (A-F) can be varied by adjusting the suspension height or by tire selection.

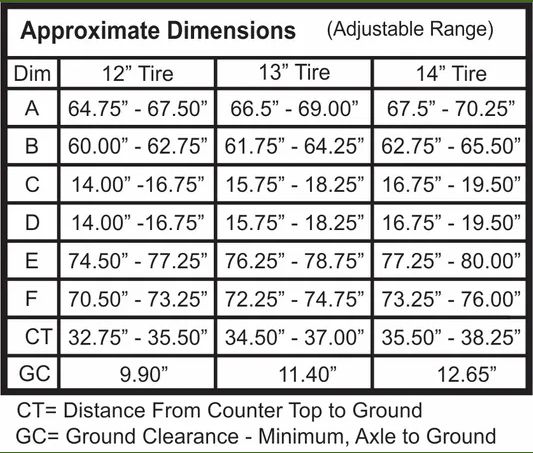

Use the chart below to determine the adjustable ranges for each tire size.

Adjustable Ride Height

Dimensions refer to the drawing above.

Adjusting the suspension Up or Down by some amount will adjust ALL the dimensions Up or Down by the SAME amount. Range dimensions are adjustable in approximately 1/2" increments within the range.

Hitch Height (C) is determined by the height of your tow vehicle's hitch. It should ideally be within plus 2" or minus 1" of Dimension D, for optimal towing. Ground Clearance (GC) dimension does not include leaf springs or leaf spring hardware, which are below the axle, near the tires.

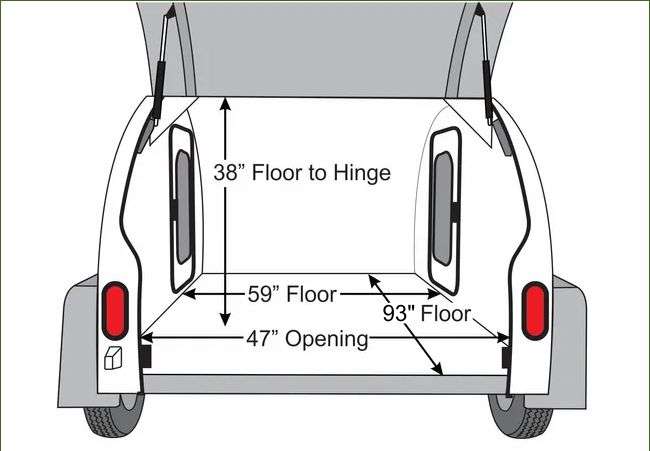

Spacious Interior - TOTES

Large rear hatch and two side doors for easy access. Open interior for maximum use flexibility.

Floor 59" x 93"

Rear Opening 47" w x 38" h

Six (6) D-Ring, Cargo Tie-Down Points

Cabin Height Floor to Vent 41"

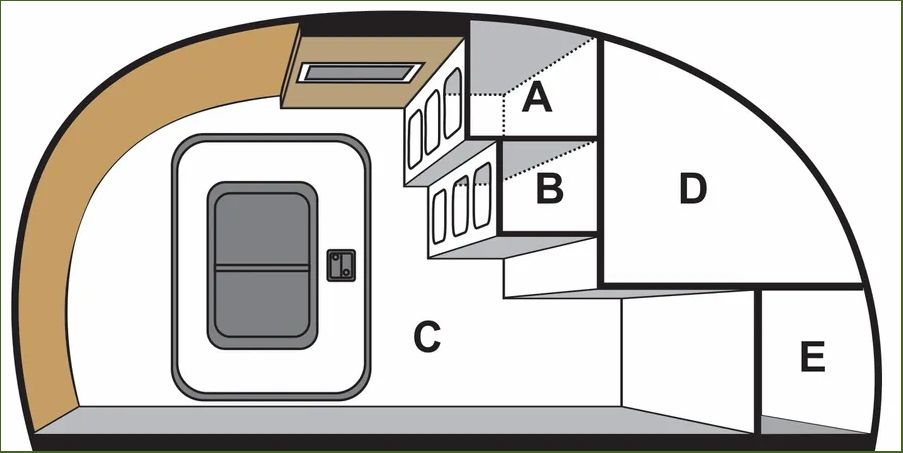

Ample Storage - ABODE

A - Upper Cabinet - 59" x 14" x 12" h

B - Lower Cabinet - 59" x 9.5" x 9" h

C- Cabin Floor 59" x 78" (4'-11" x 6'-6")

C - Cabin Height Floor to Vent 41"

C - Sized for a full Queen size bed.

Galley - (Under Hatch )

D - Countertop 59" x 24" x 24" h

E - Under Counter 59" x 12" x 15" h
